1kW Wind Turbine
1kW Wind Turbine Application

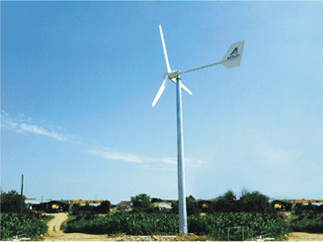

Aeolos-H 1kW wind turbine is a simple, easy installation and reliable wind generator with tail. The first installation was made in 1986 in Denmark as the off grid application for home power supply. The output can be DC 48V for battery charging or DC 110V for grid tie application with SMA Wind Boy 1100 inverter.
As a residential wind turbine, it was mainly used for home, boats and small farm power supply in Greece, Chile, Jordan, France, Turkey, Italy, Australia and South Africa. You can get more information from our installation case and video center.
More Horizontal Axis Wind TurbinesAeolos Wind Turbine 1kW Specification
| Rated Power | 1 kW |
|---|---|
| Maximum Output Power | 1.2 kW |
| Output Voltage | 48 V |
| Blade Quantity | 3 Glass Fiber Blades |
| Rotor Blade Diameter | 3.2 m (10.5 ft) |
| Start-up Wind Speed | 2.5 m/s (5.6 mph) |
| Rated Wind Speed | 12 m/s (26.8 mph) |
| Survival Wind Speed | 45 m/s (100.7 mph) |
| Generator | Three Phase Permanent Magnetic Generator |
| Generator Efficiency | >0.96 |
| Turbine Weight | 60 kg (132.3 lbs) |
| Noise | 30 db(A) @ 5m/s |
| Temperature Range | -20°C to +50°C |
| Design Lifetime | 20 Years |
| Warranty | Standard 5 Years |
1000W Price & brochure , please contact us sales@windturbinestar.com
