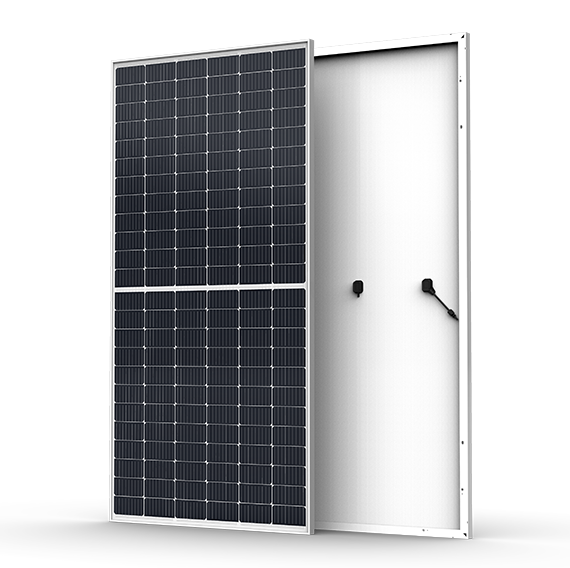

500W Monocrystalline PV Module
500W Monocrystalline PV Module Specification
| Peak Power |
500 W |
|---|---|
| Power Output Tolerance |
0~+5 W |
| Vmpp |
42.8 V |
| Impp |
11.69 A |
| Voc |
51.7 V |
| Isc |
12.28 A |
| Module Efficiency |
20.9% |
| Solar Cells |
Monocrystalline |
| Cell Orientation |
150 cells |

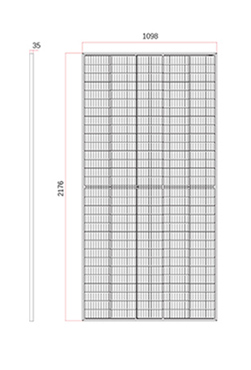

| Dimensions |
2176x1098x35mm |
| Weight | 26.3 kg (58.0 lbs) |
| Glass | 3.2mm (0.13 inches), High Transmission, AR coated Heat strengthened Glass |
| Encapsulant Material |
EVA |
| Backsheet |
White |
| Frame | 35mm (1.38 inches) Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Environment |
-40~+85 °C |
| Connector |
MC4 EV02/ TS4 |
| Warranty |
10 year product workmanship Warranty, 25 year Linear Power Warranty |
| Packing | Per box: 30 pcs; Per 40' HQ container: 600 pcs |
| Certification |
IEC 61215/ IEC 61730/ IEC 61701/ IEC 62716 |
Brochure and price of PV Module, please contact: sales@windturbinestar.com
